RTL_HPSDR: RTL-SDR to HPSDR Translation Server

The High Performance Software Defined Radio (HPSDR) project is an open source SDR project that aims to create a modular SDR for ham radio use. The idea is that users only need to include the specific HPSDR hardware that they need for their particular application.

Recently, Richard Koch has written a Linux based tool called RTL_HPSDR which allows RTL-SDR based dongles to be used with HPSDR software, such as cuSDR64 which is capable of displaying and controlling up to seven receiver slices simultaneously and PowerSDR which can display and control up to four.

Using his tool Richard was able to get seven R820T RTL-SDR dongles running simultaneously on an EKB311 Quad core ARM Cortex A9 based mini-pc using a USB 2.0 hub with a modified power supply to provide 5V@2A.

Seven RTL-SDR Setup.
Seven RTL-SDR USB Setup
Five RTL-SDR Dongles used with RTL_HPSDR and csSDR64.
Five RTL-SDR Dongles used with RTL_HPSDR and csSDR64

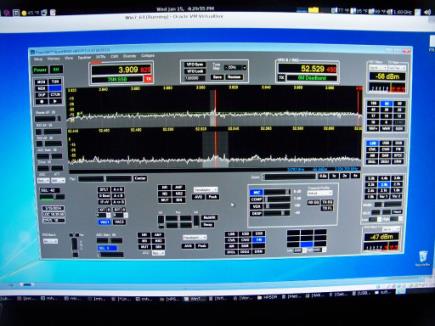

Two RTL-SDR dongles running on PowerSDR.
Two RTL-SDR dongles running on PowerSDR



RTL-SDR Now Supported by MATLAB

The Communications System Toolbox in MATLAB 2013b now supports the RTL-SDR dongle. MATLAB is a scientific computing software product which scientists and engineers use for complex technical computations and simulations.

The RTL-SDR radio support package enables you to design wireless receivers using real world signals. Using Communications System Toolbox™ in conjunction with an RTL-SDR USB radio, you can design and prototype systems that process real-time wireless signals in MATLAB® and Simulink®.

Wireless engineers, students, and hobbyists can learn to receive and decode real-world radio signals using this low cost RTL-SDR hardware connected to your computer.

Key Features:

  • RTL-SDR radio as an I/O peripheral to receive streaming RF signals
  • Configurable center frequency and sample rate
  • NooElec™ NESDR Mini USB Stick (R820T) and NooElec NESDR Nano USB Stick (R820T) SDR devices with frequency range 30MHz – 1.8GHz
  • Compatible with other RTL-SDR USB radios (eg., Terratec T-Stick E4000)
  • Several application examples for getting started:
    • FM Mono / Stereo with RTL-SDR
    • FRS Receiver with RTL-SDR
    • Spectral Analysis with RTL-SDR radio
    • Frequency offset calibration with RTL-SDR

Icecream Box Raspberry Pi RTL-SDR Receiver

Over on our Facebook page Micheal Kent has posted about his raspberry pi based RTL-SDR receiver which runs rtl_udp. There’s not much more information on this project, but the video he posted shows what appears to be a Raspberry Pi and RTL-SDR dongle mounted inside an icecream box. There are two knobs mounted on the outside that control the brightness of an LCD screen which shows the tuned frequency, and another knob which controls the frequency itself.

RTL-SDR “Go Bag” Kit Video

YouTube user Eric William has put together a video showing off his RTL-SDR “Go Bag” kit. The kit contains all the items he needs to use an RTL-SDR wherever he goes. In the video and video description he talks about all the adapters he uses, and also all the miscellaneous items such as upconverters and portable antennas that he carries in the kit.

USB Software Defined Radio- Cheap "Go Bag" Kit

Video Tutorial: Setting Up Satellite Tracking with SDRSharp and Orbitron

YouTube user HamradioSat has put up a video tutorial showing how to connect SDR# and Orbitron together. By interfacing the two, Orbitron can then be used to automatically tune to the doppler corrected frequency of a satellite passing overhead in SDR#. Orbitron is a free satellite tracking software program.

This can be useful for simplifying the tracking of NOAA weather satellites and downloading their live images.

Using the RTL-SDR as a Cheap TV Satellite Finder

Finding the correct direction to point a satellite for TV reception can be difficult without the right equipment. YouTube user MegaOscarVideos shows us in the video below how he uses an RTL-SDR to accurately aim his satellite for TV reception.

He uses a TV satellite dish with an LNB connected to a bias-T circuit as the receiver, which is then connected to the RTL-SDR. As the satellite is moved he looks for the direction at which the signal level in SDR# increases the most.

RTL SDR as cheap TV Satfinder

GR-RDS: An FM-RDS Receiver for GNU Radio which supports RTL-SDR

GR-RDS is a GNU Radio program which can be used for the decoding of FM RDS data with the RTL-SDR. It has recently been updated to support GNU Radio 3.7.

RDS is an acronym for Radio Data System, which is used in FM radio transmissions to embed information such as radio station and programme/song information. Some conventional FM radios display this information on an LCD screen.

One the authors of GR-RDS has also recently posted a video on YouTube showing it in action with an RTL-SDR source block.

Meteor Detection with the RTL-SDR

YouTube user Tim Havens has uploaded two videos showing his meteor detection results with an RTL-SDR dongle. Tim uses a stock R820T dongle, and a 6 element yagi antenna with LNA.

For the software he uses Spectrum Lab and SDRSharp.

Update: Tehrasha from the comments section has found a page by Tim Havens showing a little information on his meteor detection setup.

Comparison Between Portable Shortwave Radios and the RTL-SDR

YouTube user mutezone has uploaded a video showing a comparison between several portable shortwave radios and the RTL-SDR. His results show that the portable radios performed better than the RTL-SDR dongle at shortwave-dxing, however we are unsure of what method he used (direct sampling or upconverter) to get access to the shortwave bands on the RTL-SDR.

Shortwave Performance test: Portable Radios vs RTL-SDR

KN0CK and KF7LZE Custom HF RTL-SDR Receiver Revision 5

Previously on this blog we’ve seen KN0CK release his custom modified RTL-SDR tuners which have built in upconverters for accessing the HF bands. Revision 5 of the KN0CK receiver is now almost ready for sale, and will be sold over at KF7LZE’s webstore Easy-Kits.com.

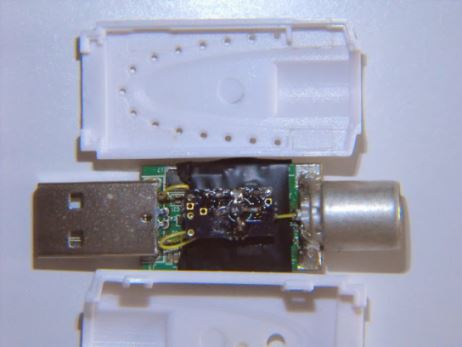

Revision 5 promises to be lower priced as it will run using the direct sampling mod instead of using an upconverter which would require more components. It will also use a Mini-Circuits MAR 8 wideband amplifier to improve weak signal performance.

Kn0CK and KF7LZE RTL-SDR HF Receiver Rev. 5
Kn0CK and KF7LZE RTL-SDR HF Receiver Rev. 5
