This program started as a simple FFT program running under DOS a long time
ago, but it is now a specialized audio analyzer, filter, frequency converter,
hum filter, data logger etc (see history). You can download
it from this site. Or look into the manual
(in HTML format), even though the manual included in the archive will be more
up-to-date. Furthermore, the same manual has occasionally been converted into a
single PDF (SpecLab_Manual.pdf),
but any attempt to create a common index and table of contents for this PDF,
using OpenOffice (with proper page numbers instead of the hyperlinks) has failed
miserably - see note in the preface of the PDF document.
If you are looking
for a short description in German language, look here.
The revision history is here.
How to use SpecLab with SDR-IQ is described here;
and how to use SpecLab with PERSEUS (without a virtual audio cable in
between) is here
.
If you need help getting the program running, or have questions about a
particular function, look into the Spectrum
Lab User's forum at Yahoo.

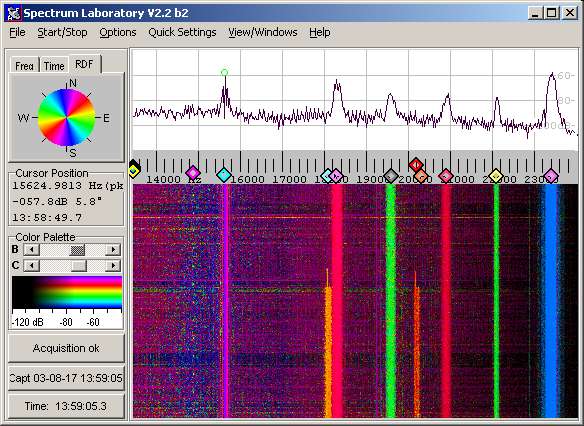

(SpecLab screenshot in "Colour Direction Finder" mode, VLF spectrum, colour~bearing)
Spectrum Lab runs under Windows 98, 2000, ME, XP (home and professional), Linux/WINE, but obviously not under Windows Vista. The reason why it doesn't work under "Vista" is unknown. Since I don't use Vista myself, there's little I can do about this. Use Linux/WINE, or a virtual PC running XP (inside your shiny power-hogging Vista machine).
Features

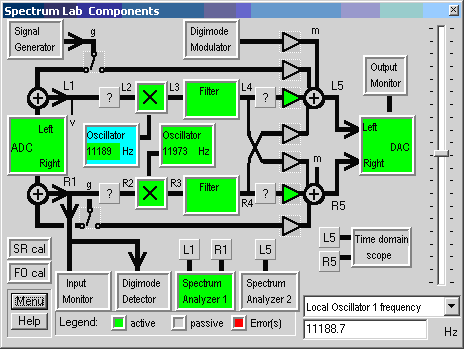

(screenshot
of "Components" window from an older version)
Features which this analyzer does not have
(but others do...):
In March 2009, a group of radio amateurs successfully bounced a radio signal
off Venus, over a distance of (2*) 45 million kilometers. A short description
of the reception technique (software) can be found here;
more details are on the AMSAT-DL website,
and in the AMSAT journal soon. Thanks to DD5ER, DJ1CR, DJ4ZC, DH2VA, DK8CI,
DL1YDD, G3RUH, ON6UG, and everyone else who contributed, for being part of the
team.
The configuration used for the (2.4 GHz) EVE test is part of the
installation package now (EVE-SDR-IQ-5kHz_2G4.usr); we used the SDR-IQ for this.
If you want to try something similar and have a PERSEUS receiver, use
EVE-Perseus_2G4.usr instead.
How to use Spectrum Lab to produce field strength plots of DI2AG, an experimental medium wave beacon on 440 kHz in southern Germany. It realizes some ideas we spoke about at the Ham Radio fair in Friedrichshafen (June 2005). More info in this document (up to now, in german language only) : Beschreibung des Einsatzes von Spectrum Lab als Bakenlogger für DI2AG. Update 2007: DI2AG has moved to 505 kHz now (which is a new amateur radio band in many countries - with the exception of Germany..).
There is a special narrow-band transmission mode in Spectrum Lab's "digimode terminal" called Chirped Hell, based on an idea by Markus, DF6NM. We used it on the amateur longwave band (136 kHz) to make some narrow band transmission. A special property of Markus' Chirped Hell principle is the relatively low crest factor, so it can be used to transmit characters (and even small images) quite effectively, but (unlike sequential multi-tone hell) you need a linear transmitter. An image received on a waterfall in "QRSS 3" mode may look like this:
This article by Lyle Koehler, KØLR, describes a simple "software defined" receiver and some other (easier-to-use) alternatives to SpecLab too. Don't miss Lyle's downconversion circuits which he sucessfully uses to the receive US-American LowFER beacons. The last part describes how to log fieldstrengths of LowFER beacons with Spectrum Lab's plot window.
This nice website by Andy G7IZU monitors Meteor Shower, Aurora Sporadic-E and Solar Flares in real time, mostly using reflections of radio signals in the 50 MHz region.
Jacques, VE2AZX, describes here how Spectrum Lab can be used for precise frequency measurements in the millihertz region. Don't miss his detailed description - it's actually better than SpecLab's built-in help system ;-)
If you have a suitable soundcard, you can use SpecLab to make ultrasonic bat calls visible and audible in real-time. In the menu, select "Quick Settings".."Natural Radio / Animal Voices" .. "Bat Converter". This configuration requires a soundcard with true 96 kHz sampling rate, and a PC with at least 1.7 GHz. The software shows the call in a fast spectrogram (with high time resolution, but little frequency resolution), and converts the ultrasound down to audio, notches out constant-frequency "carriers" (like your CRT monitor's line sync frequency, which is annoying if it's in the "bat band"), and finally passes the downconverted and filtered signal through an automatic gain control stage.
As a test, I used a cheap miniature electret microphone to make this recording of bat sounds (96 kHz, 16 bit, mono .. right-click to save it). If you play it with a normal audio player, you will hardly hear anything. But if you play it into SpecLab (menu "File".."Audio Files".."Analyze and Play", with the "Bat Converter" setting loaded, you will hear the bat calls. I don't know which species it is yet, but they seem to be quite frequent in this part of Germany.
The FFT-based filter in Spectrum Lab is already very versatile, but it can still be extended with a "filter plugin". These plugins come in the form of a special windows DLL which can be loaded from the filter control panel. Such plugins can be written with any C / C++ Compiler (recommended: Borland C++Builder V4 or DevCpp V4.9.9.2; the latter is a free development system based on the GNU / MinGW compiler). To develop your own plugin, download this FFT Filter Plugin package - it contains all required information required to write a filter plugin, and a sample plugin written in the "C" programming language. NOTE: THE DLL INTERFACE IS STILL "SUBJECT TO CHANGE" !
To check if you have the latest version of Spectrum Lab, compare the text in
the main window's title bar with the revision number and compilation date at the
top of this document. For example, if you have "Spectrum Laboratory V2.2 b1", it
is way too old. If you have SL already installed, you can check if it's
up-to-date by selecting Help .. Check for Update in the main
menu. The primary download site for Spectrum Lab is here:
As an alternative, check the download section on Ko
Versteeg's website .
The archive includes EXE-file, sample setting
files, help system (in HTML format) and a few other goodies, but not utilities
below.
Some additional utilities which may be useful:
If you want to write your own program to control Spectrum Lab, read this document which explains how to communicate with it using simple WM_COPYDATA messages (the same data structures are used to exchange audio via UDP or TCP, too).
